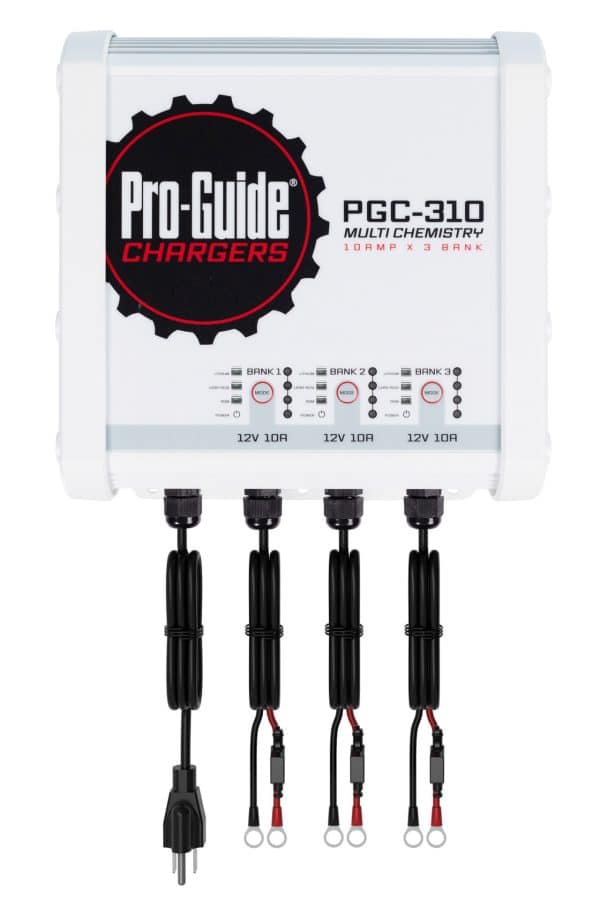

Pro-Guide Battery Charger PGC-310
$449
The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.
12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE
Each Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery’s state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.
Protection:
– Output Over-Voltage
– Output Over Current
– Output Short Circuit
– Output Reverse Polarity
– Over Temperature
Input:
– Input Voltage: AC 110-120V
– Frequency: 60Hz
– Input Current: <6A
- Additional information
- Specifications
Additional information
| Banks | 3 |
|---|---|
| Amps | 10a/12v |
| Battery Type | Lead Acid/AGM/Lithium |
| Output Voltage | DC 12V x 3 |
| Max Output Voltage | 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery |
| Output Current | 10A x 3 |
| Length (in / mm) | 9.06in / 230mm |
| Width (in / mm) | 9.96in / 253mm |
| Height (in / mm) | 3.86in / 98mm |
| Weight (lbs / kg) | 15.9lbs / 7.2kg |
| IP Rating | 68 |
