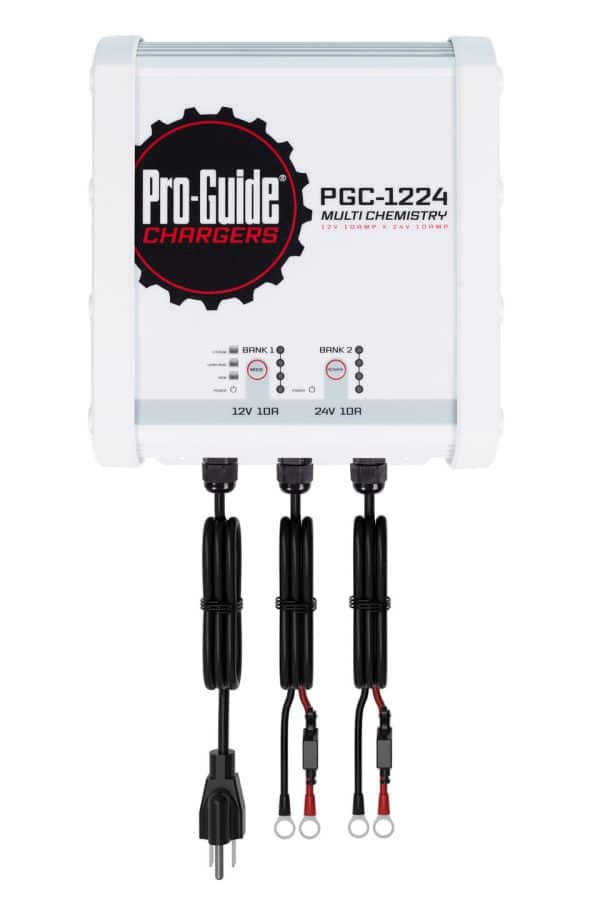

The Pro-Guide PGC-1224 is a 12V Lead Acid / AGM / Lithium & 24V Lithium on-board battery charger.

12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE // 24V LITHIUM

Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a Single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 24V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery’s state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Protection:

– Output Over-Voltage

– Output Over Current

– Output Short Circuit

– Output Reverse Polarity

– Over Temperature

Input:

– Input Voltage: AC 110-120V

– Frequency: 60Hz

– Input Current: <6A
